THE SYSTEMS · CONTAINERISED

CeyCell 100 kW

Long-duration, hybrid thermo-chemical energy storage engineered for dependable off-grid or hybrid power.

Up to 20 hoursIP54 enclosure6,000 cycles

Request a quotation Explore all systems →

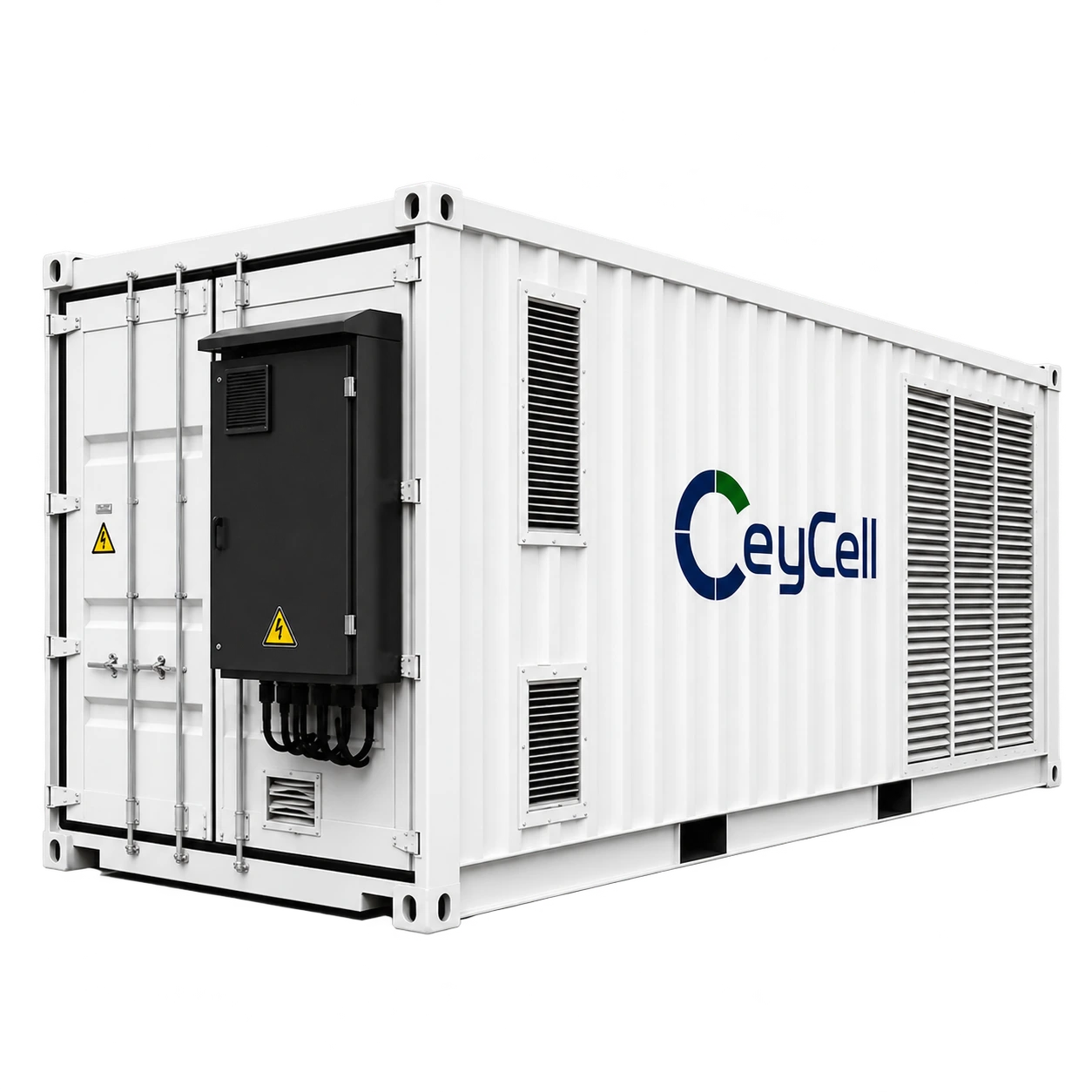

Original CeyCell 100 kW product photograph

FROM THE PUBLISHED CATALOGUE

Every figure, from the catalogue

100 kWSystem rating

Up to 1,920 kWhEquivalent system energy

20 hoursPublished upper-duration claim*

6,000Cycles @ 90% DoD (catalogue)

* All specifications and operating hours are as published in the supplied catalogue; final performance depends on site conditions, load and the installed system.

QUOTED FOR YOUR SITE

Technical specifications

Values below are transcribed or summarised from page 12 of the supplied CeyCell product catalogue. *Actual output is subject to the integrated system and site conditions.

System nameCeyCell 100 kW

TechnologyHybrid Thermo-Chemical Energy Storage System

ApplicationOff-grid / Hybrid energy storage

Equivalent system energyUp to 1,920 kWh

Operating durationUp to 20 hours*

Cycle life6,000 cycles @ 90% DoD (catalogue)

CoolingPassive cooling

EnclosureIP54 (published standard)

InstallationOutdoor

Published dimensions8 ft × 8 ft × 40 ft

MaintenanceMinimal

Warranty15 years (catalogue; terms apply)

ENGINEERED DOWN TO THE DETAIL

Designed for continuous stationary power

Non-lithium design

Thermo-chemical heat storage technology

Passive cooling

Engineered thermal management

Hybrid-ready

Compatibility subject to inverter / system design

Local support

Made in Sri Lanka

THE COMPLETE FAMILY

Explore other systems

Original CeyCell 5 kW energy storage product photograph

5 kW

Usable energy up to 96.2 kWh

Wall / cabinet · Indoor · IP20View system

10 kW

Usable energy up to 192.4 kWh

Wall / cabinet · Indoor · IP20View system

15 kW

Usable energy up to 288 kWh

Wall / cabinet · Indoor · IP20View system

20 kW

Usable energy up to 384.8 kWh

Wall / cabinet · Indoor · IP20View system

25 kW

Usable energy up to 480 kWh

Wall / cabinet · Indoor · IP20View system

50 kW

Usable energy up to 960 kWh

Containerised · Outdoor · IP54View system

ENGINEERING DETAILS

The details behind the system

A closer look at the original CeyCell product family. The 100 kW system is listed for outdoor installation with IP54 (published standard) enclosure specification. Confirm the final configuration with the technical team.

Explore the safety design

Cabinet enclosure

Passive cooling

LET’S TALK ENERGY

Get a quote for the CeyCell 100 kW

A free site assessment can confirm the right capacity, inverter and installation requirements.
